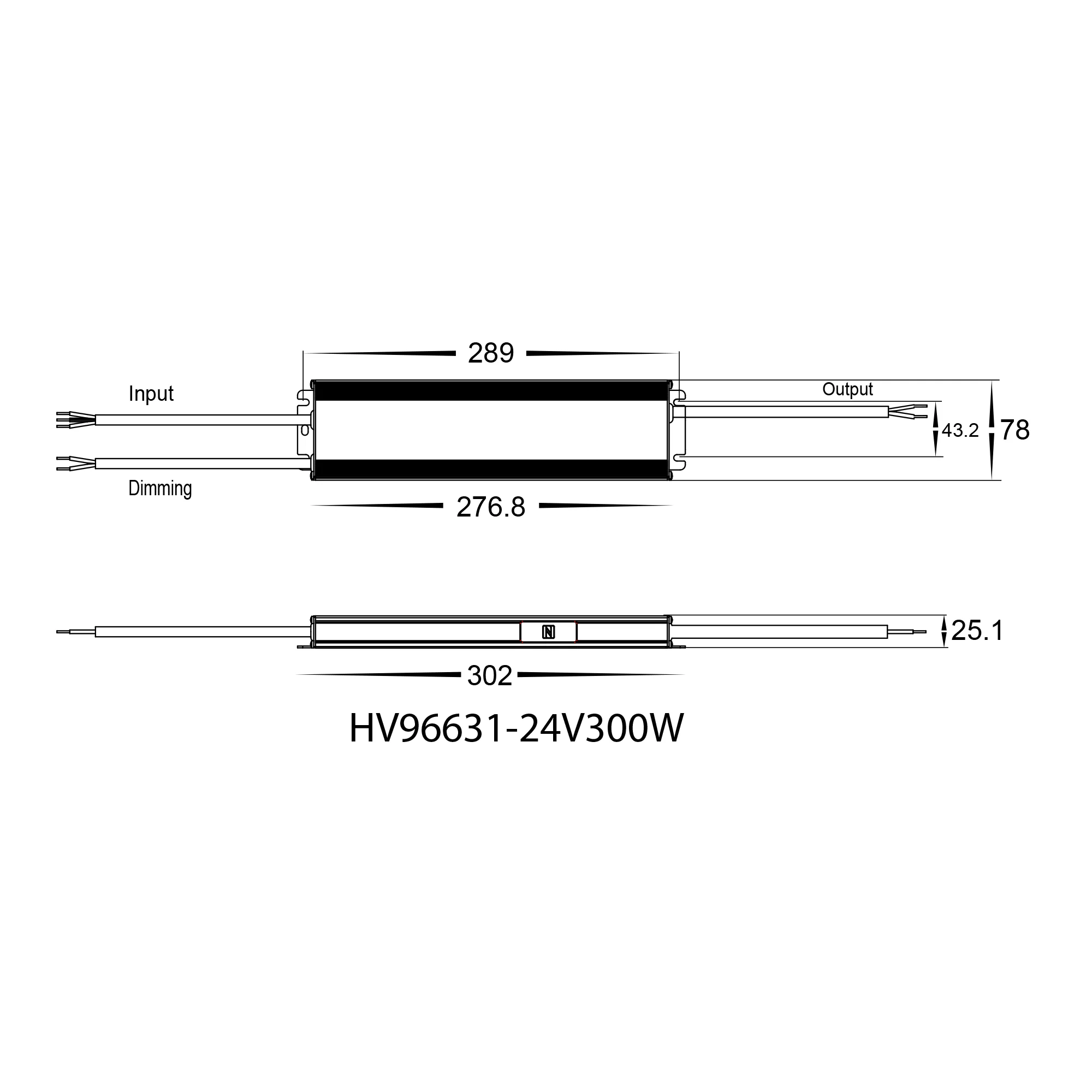

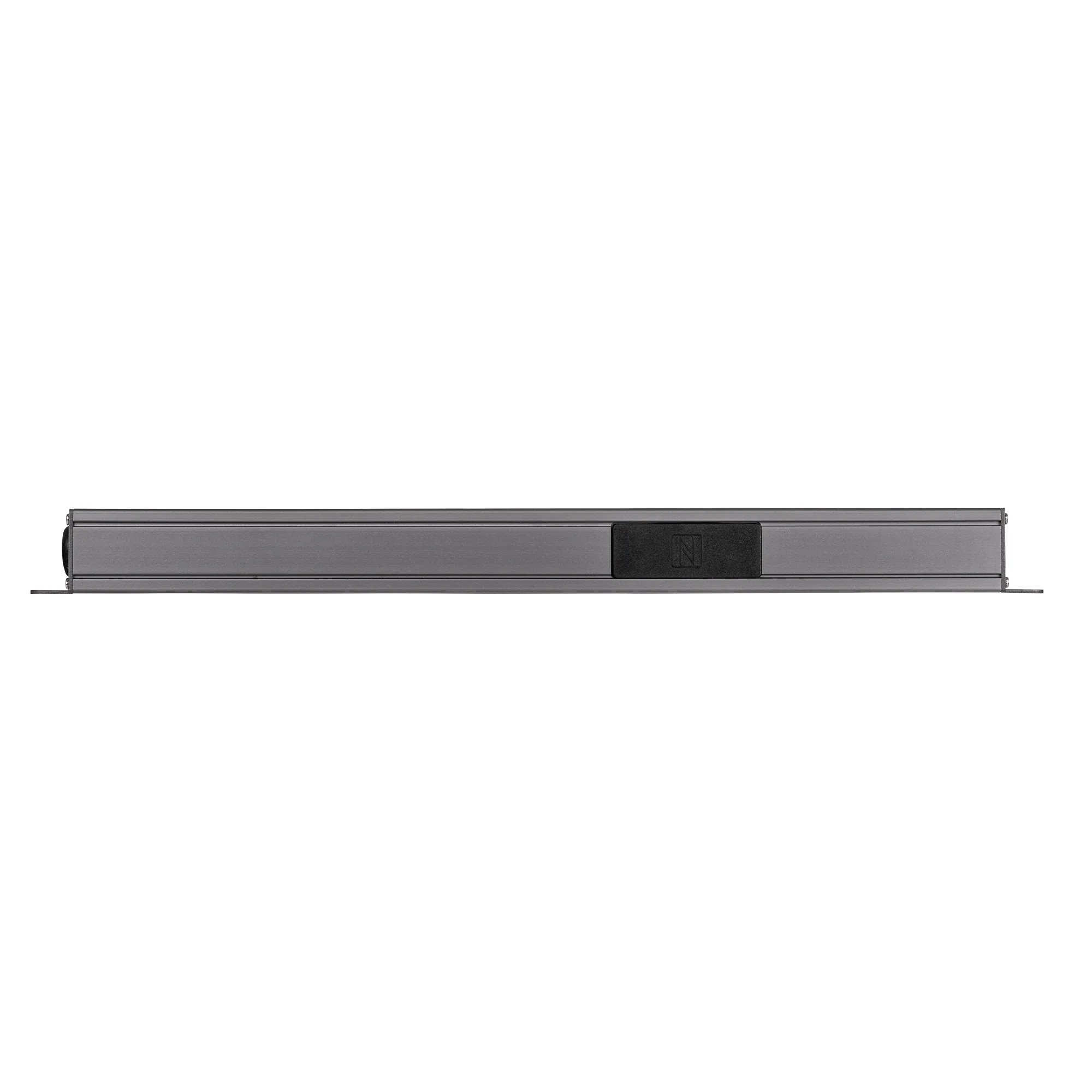

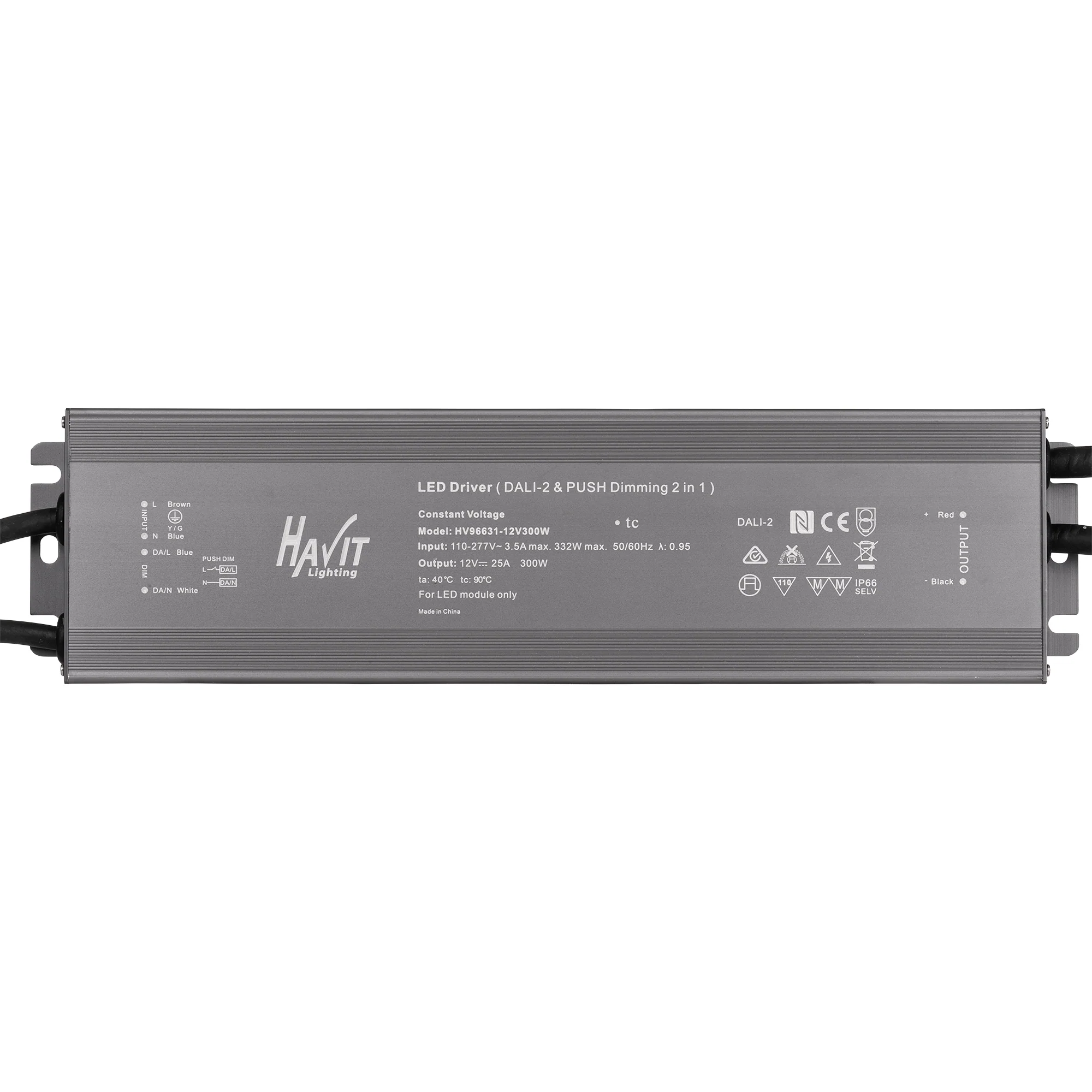

HV96631-12V300W | HV96631-24V300W - 300W Dali 2 + Push Dim Dimmable LED Driver

• 2in1 Dimmable LED Driver
• Dali 2 Dimmable + Push Dim
• Adjustable settings using NFC APP
• Dimming Range: 5%-100%
• High Power Factor 0.95
• Flicker Free
• Flex and Plug Included
• IP rating: IP66
• Input Voltage: 240v AC
• Output Power: 300w
• Recommended Maximum load: 240w
• Recommended Minimum Load: 30w
• 3 Years Replacement Warranty (items ordered after 01/01/22)

Product Information

Part Number	Output Voltage
HV96631-12V300W	12v DC Constant Voltage
HV96631-24V300W	24v DC Constant Voltage

Data Sheet

Data Sheet

Install Sheet

Installation Instructions

NFC APP Instructions
